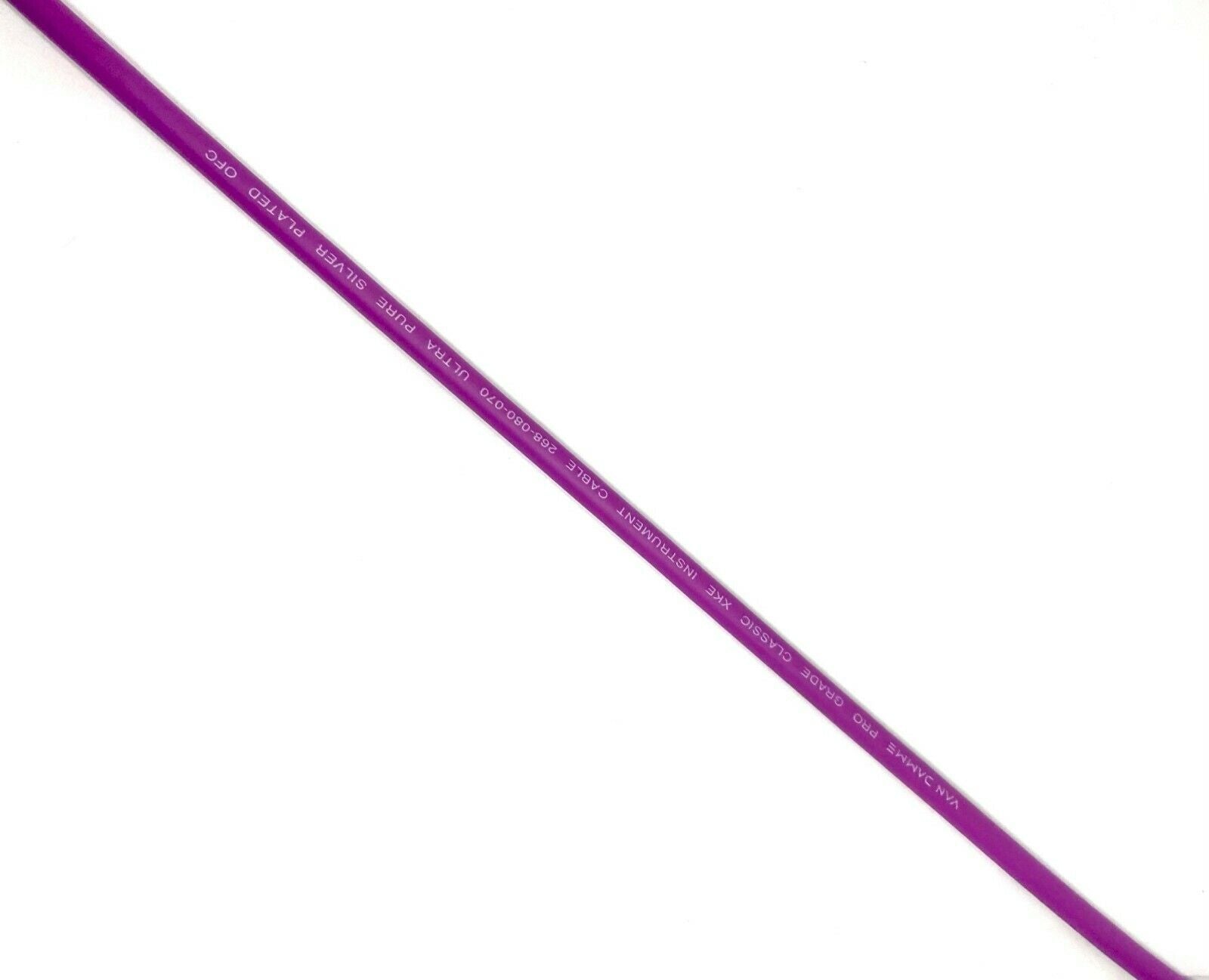

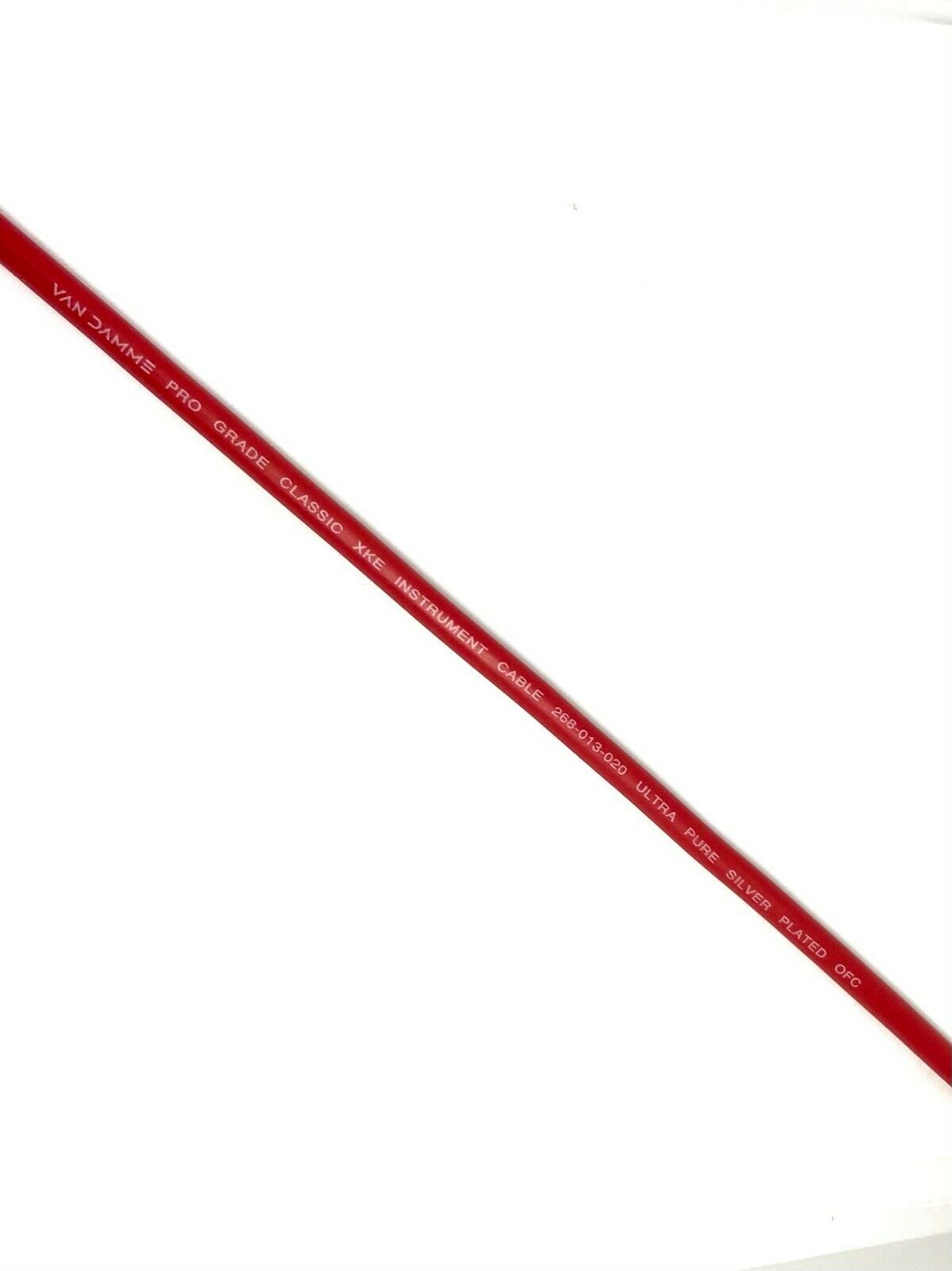

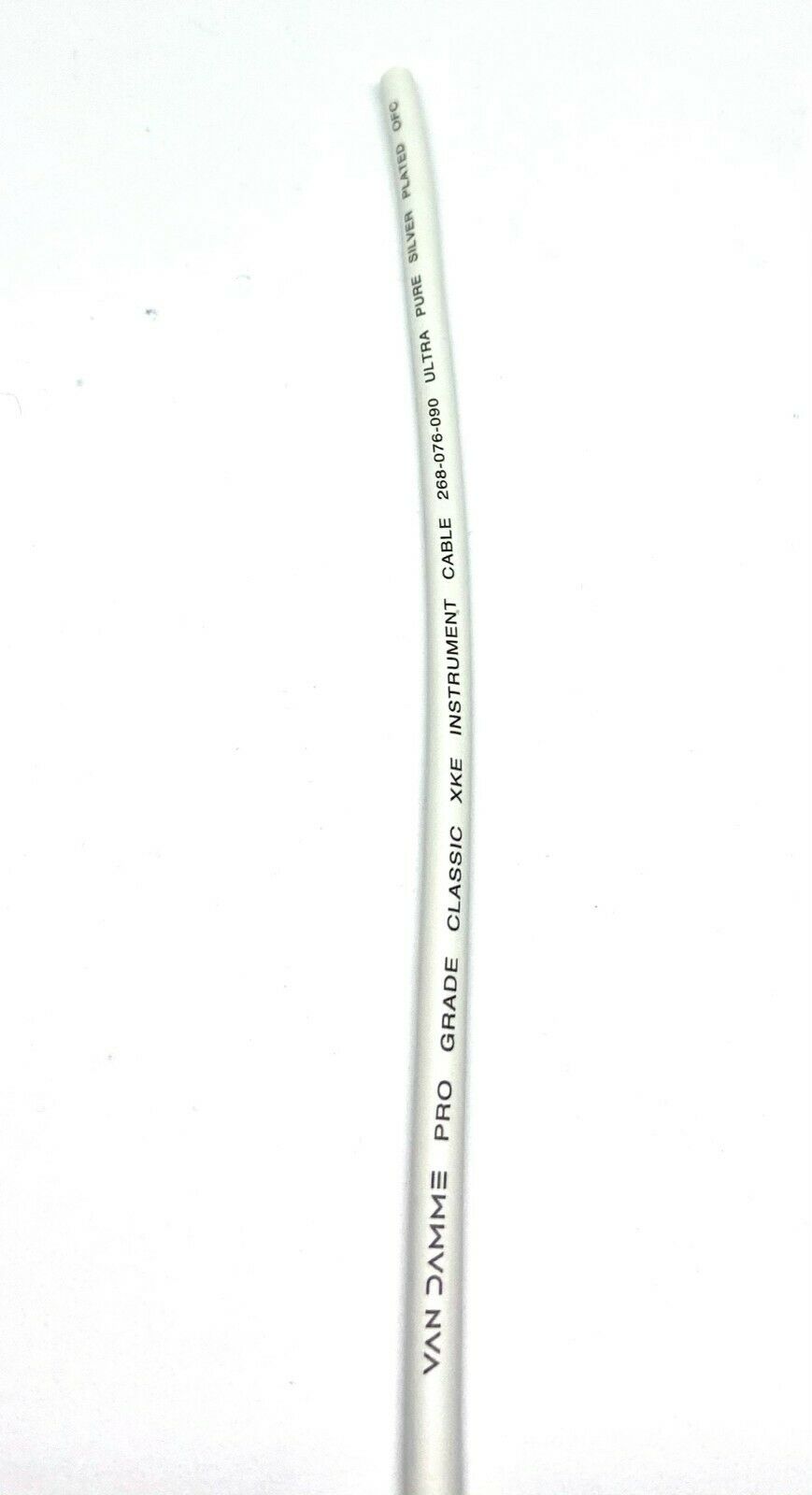

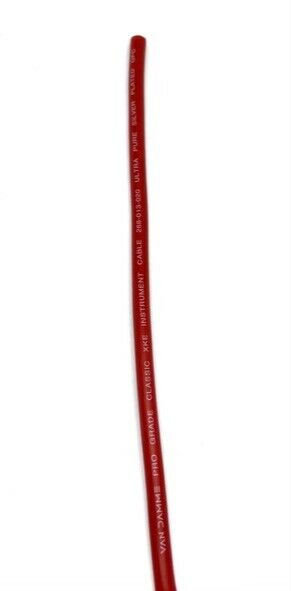

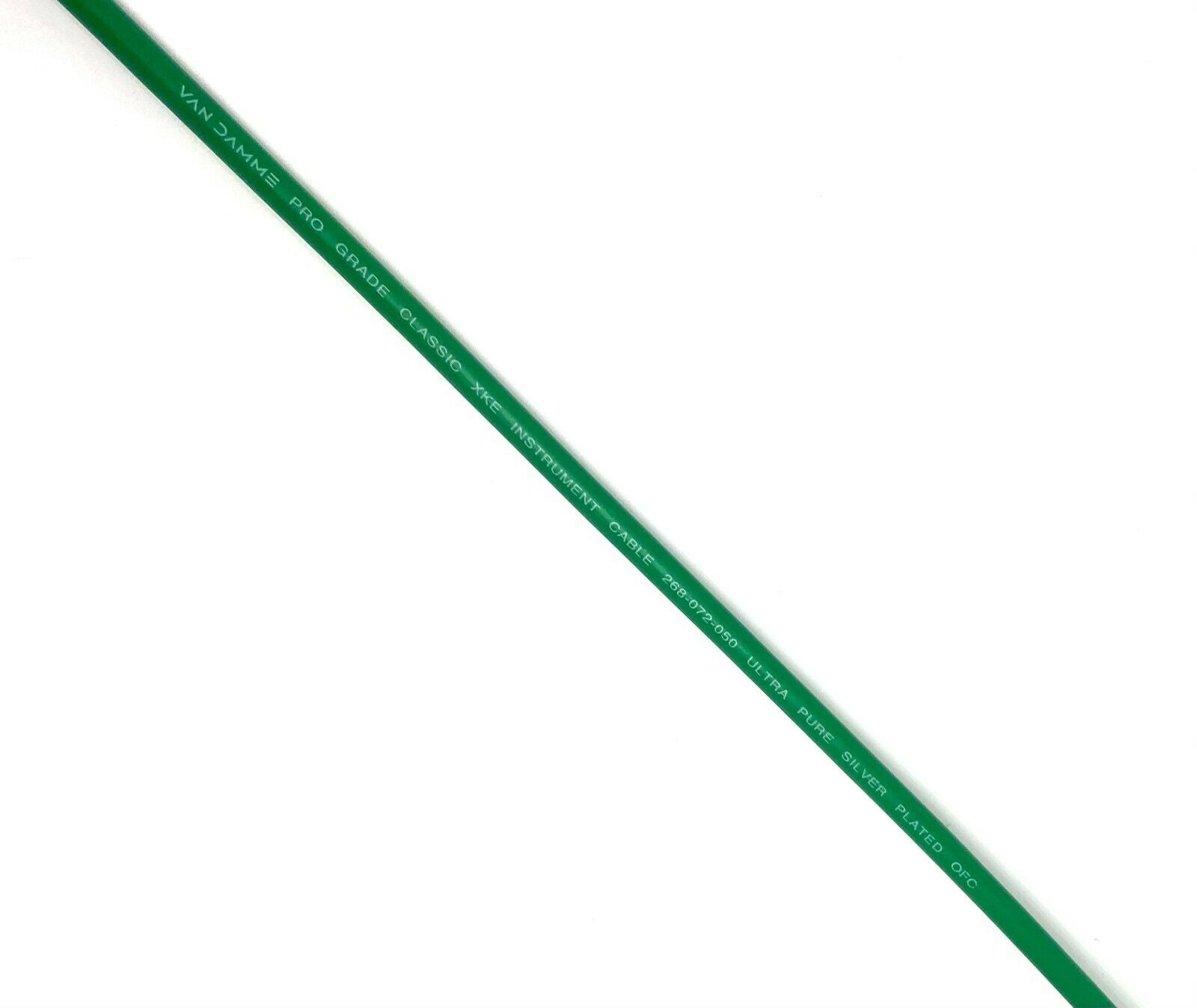

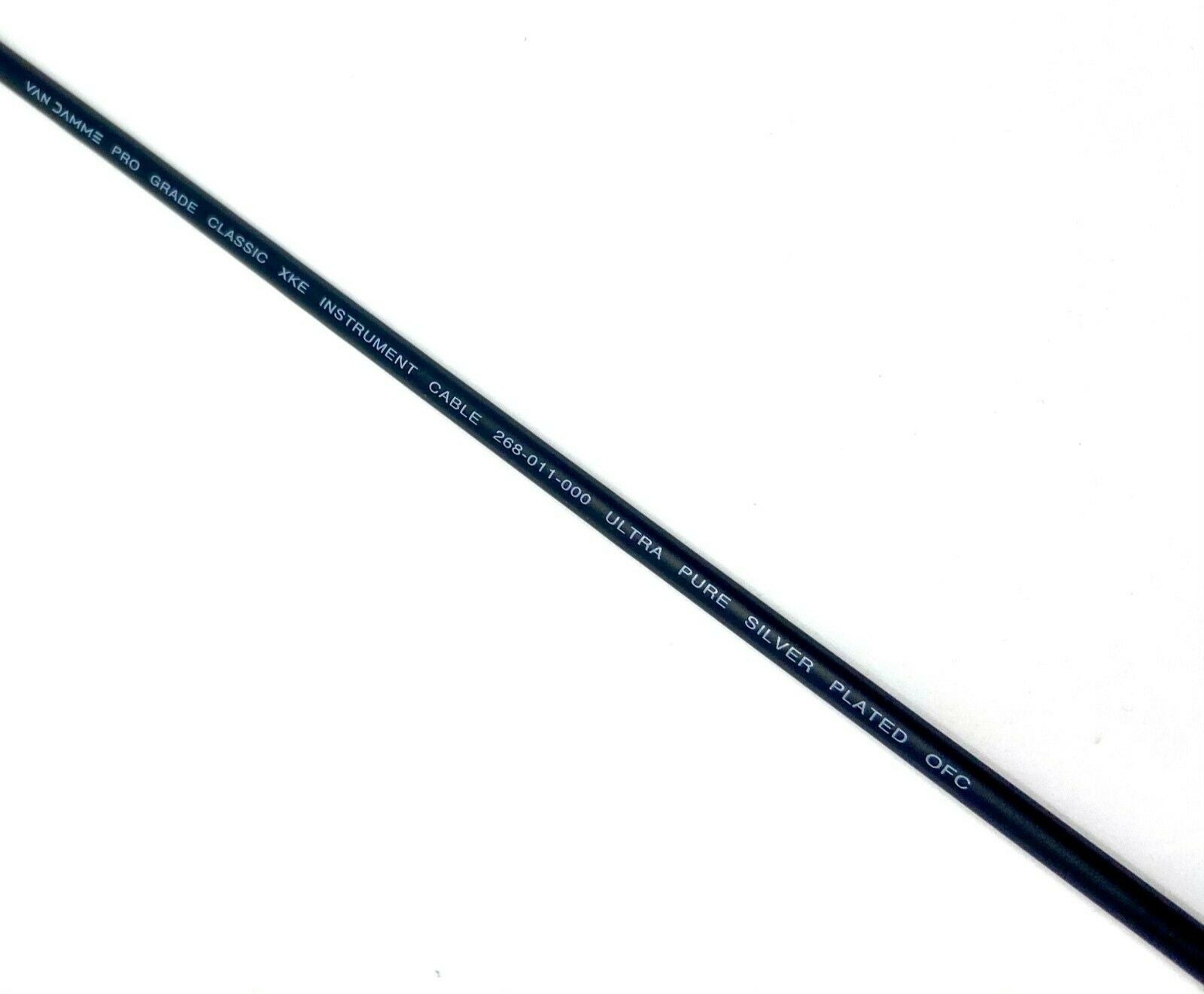

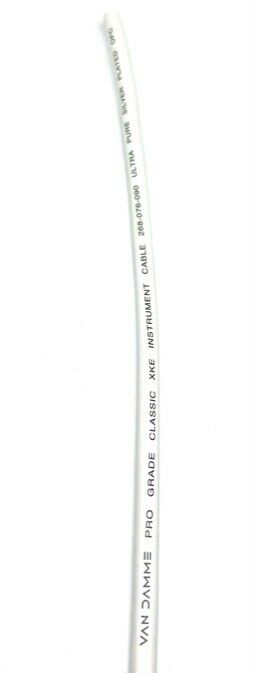

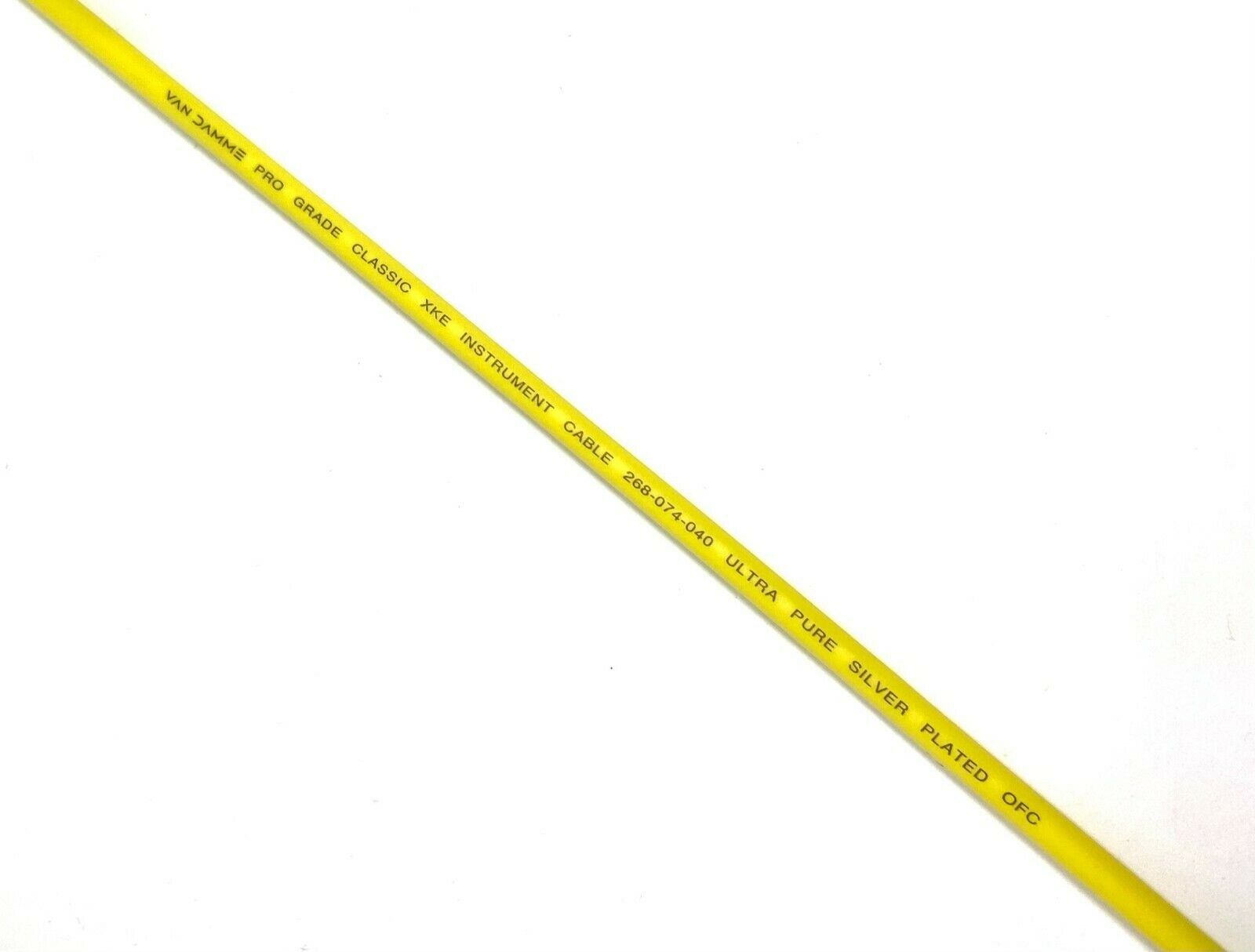

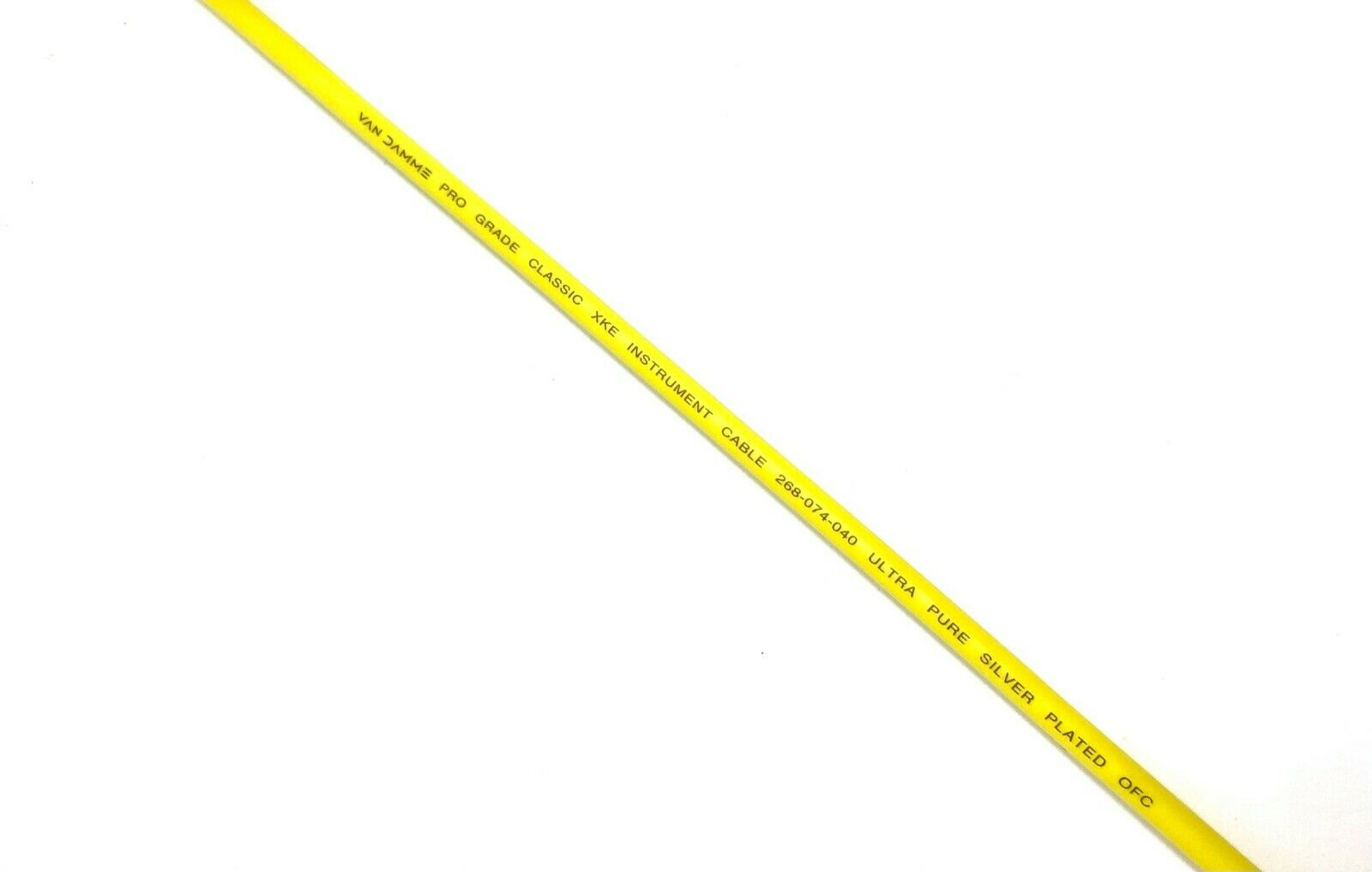

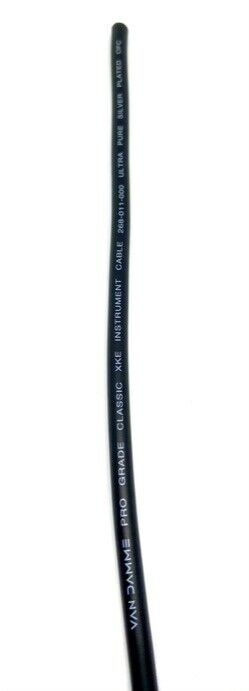

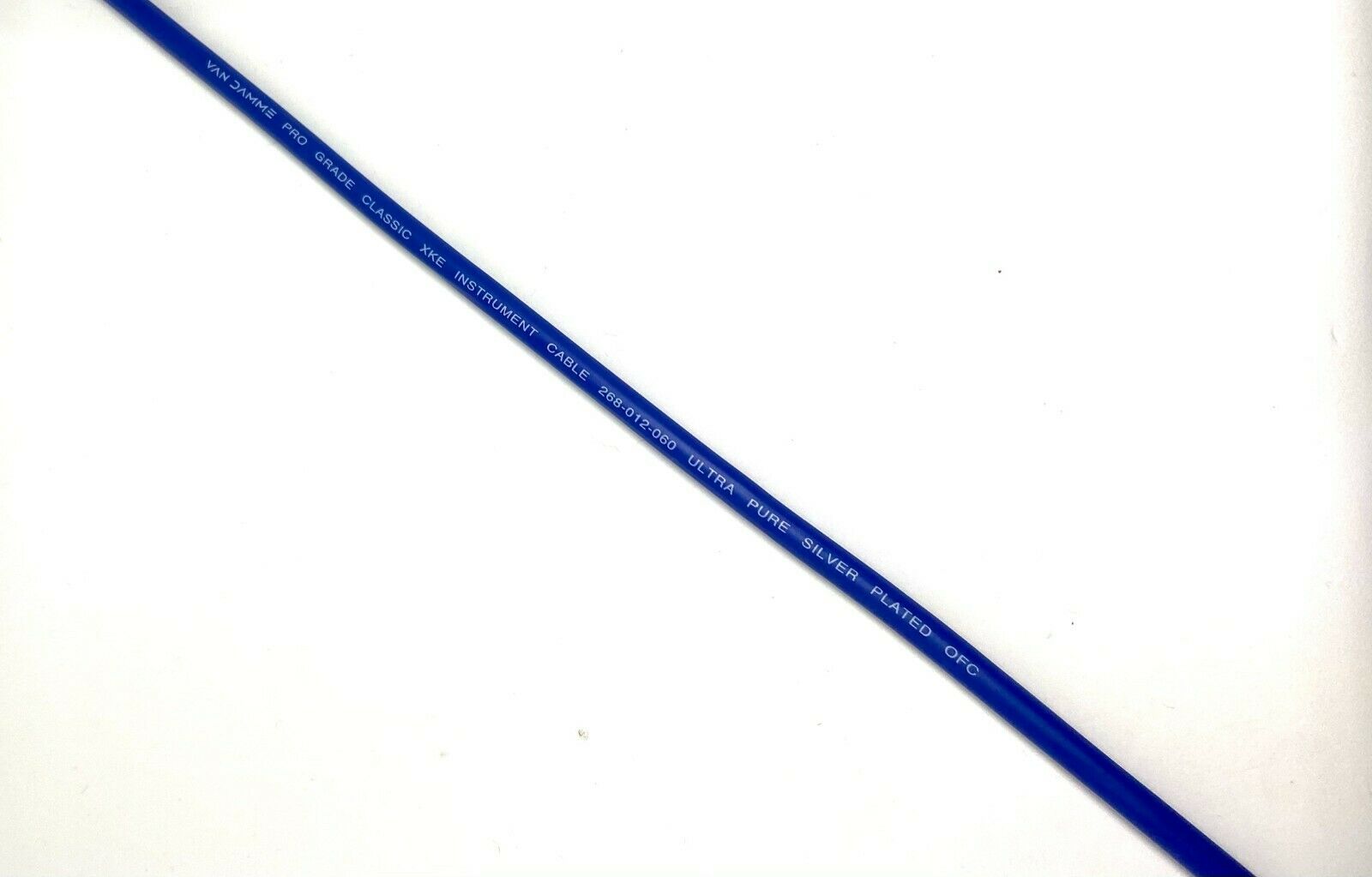

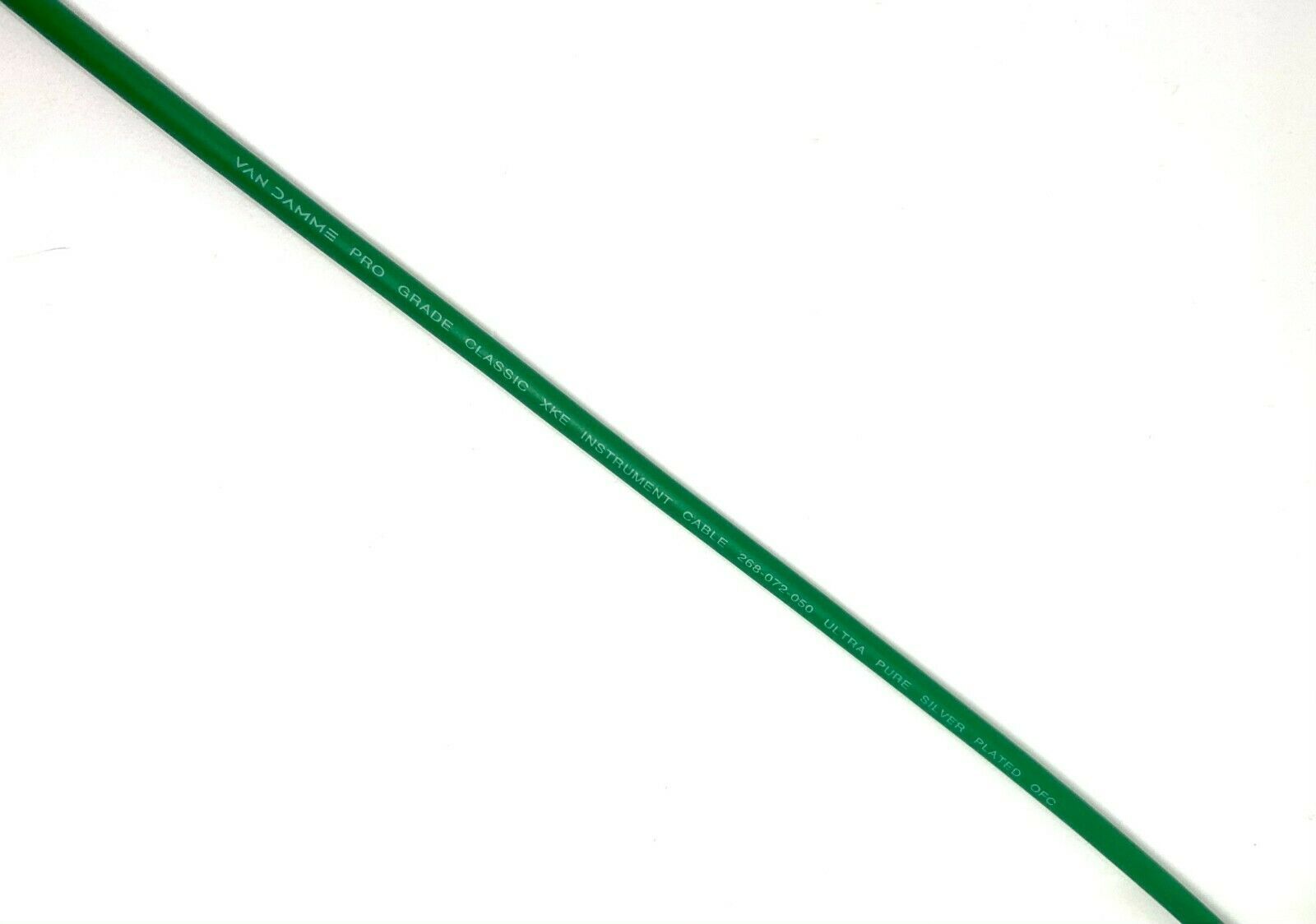

Van Damme XKE Pro Instrument Cable
This can also be purchased in 100M rolls
Product Specification
Van Damme Pro Grade Classic XKE Instrument Cable is a relatively low capacitance unbalanced audio cable for use with guitars, keyboards and other unbalanced output devices. Its tight construction and dual screens of conductive thermoplastic and close lapped copper ensure noise free handling and excellent noise rejection making this cable ideal for on stage use.
excellent noise rejection making this cable ideal for on stage use.
· Guitar cables
· Keyboard and sound module cables
· Hi-Fi interconnects Application Notes
· Low noise and high flexibility for on stage use

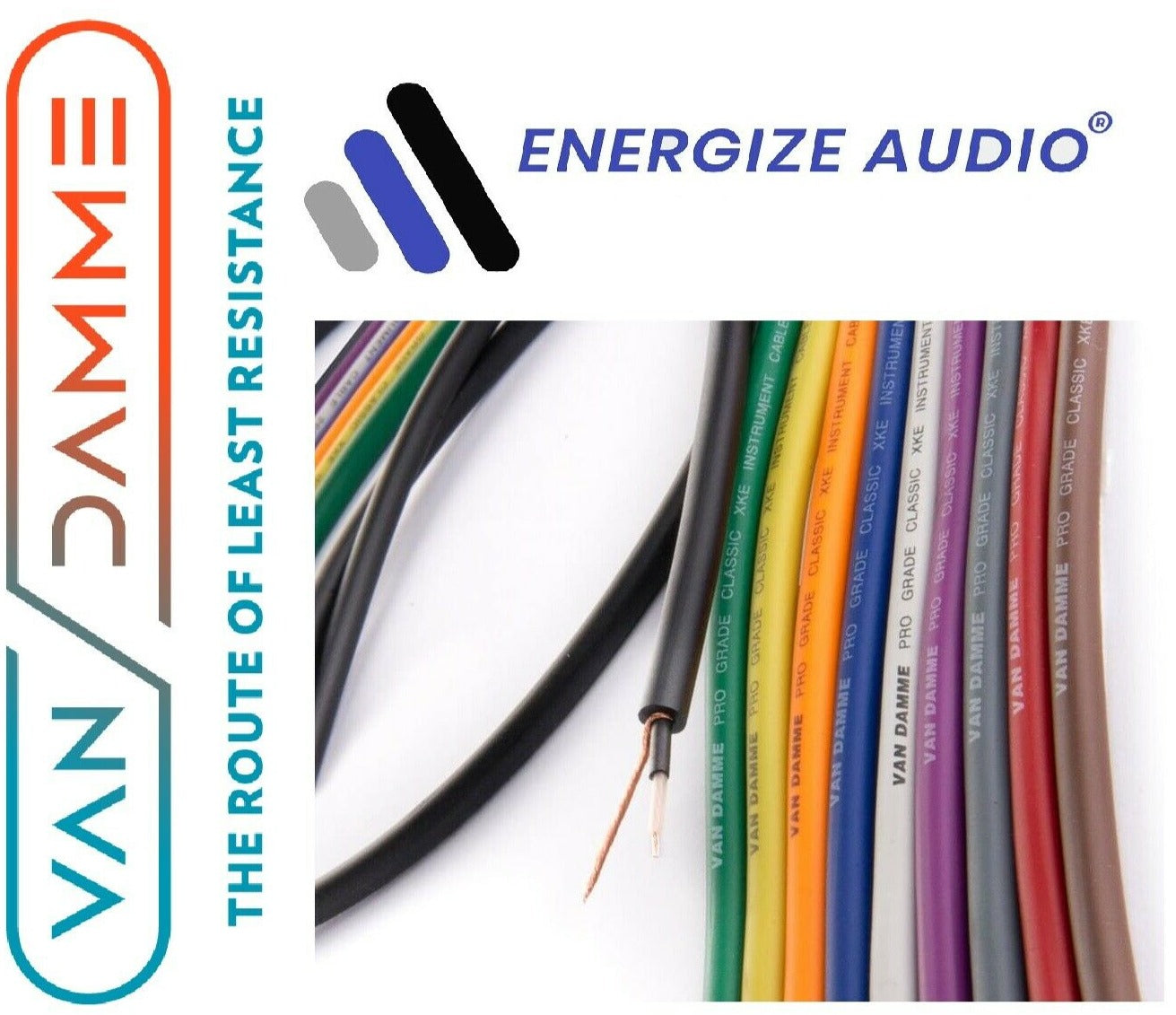

· Multiple colours for application or length colour coding
· Dual thermoplastic/lapped copper screens for excellent noise rejection
· Combination of silver plated and plain ultra-pure oxygen free copper conductors for unsurpassed sound quality
Mechanical Specification Conductors
3 x 0.20 mm silver plated ultra-pure oxygen-free copper
4 x 0.20 mm bare ultra-pure oxygen-free copper
Conductor size 7 x 0.20 mm, 0.22 mm2 , AWG 24/7
Insulation Foamed polyethylene
Screen 1 0.40 mm conductive thermoplastic
Screen 2 80 x 0.10 mm close lap spiral bare oxygen-free copper
Jacket material Flexible PVC/Neoprene composite
Overall diameter 6.00 ± 0.15 mm
Bend radius 10 x overall diameter
Operating temperature -20 to +70 ⁰C
Electrical Specification
Resistance Conductor < 90 Ohm/km
Insulation > 5000 MOhm/km
Capacitance Core to screen 90 pF/mF/m
Please also see our range of terminated RCA and Jack leads.
